Automatic Drop Test Equipment

Brand Name : Infinity Machine
Model Number : RS-DP-03A
Certification : CE, ISO
Place of Origin : Made in China
MOQ : 1 set
Price : Negotiable
Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 200 sets per month
Delivery Time : Shipped in 15 days after payment
Packaging Details : Standard export wooden case with operation manual and video inside.
Drop height : 300~2000mm
Sample weight : 2kg (MAX.)
Drop height setting : Touch panel setting and display
Min release height : 300mm
Air source : >0.5MPa
Weight : 420kg
Dimension : 1000x1180x2415mm
Power supply : AC220V 30A or 110V 60Hz 6A
Contact Now

Automatic Drop Test Equipment

Model: RS-DP-03A


This machine is aimed at assessing the effect of unintentional drop of the product by user in actual use on the product performance, which is applicable to the original-gesture drop test of mobile phone, tablet, e-reader, telephone, e-dictionary, and other consuming electronic products.

Standard: IEC 60068-2-32

Patent No.: ZL 2009 2 006 1352.2

Machine Structure:

1. This machine adopts AC variable-frequency and variable-speed motor plus synchronous pulley for adjusting drop height range, which is durable;

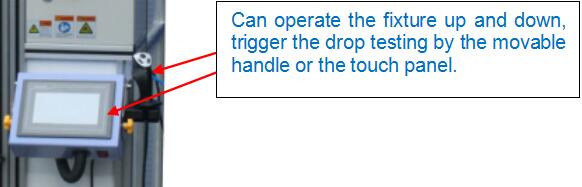

2. This machine adopts a color LCD touch panel plus PLC for motion control and set, by which drop cycles can be preset and power-off memory

function is provided; all control parameters will be set via the touch panel: drop, reset, height setting, number of drops and count, etc.;

3. Operator just needs to input the size of the product to be subject to drop test via the screen only: length L, width W, thickness T, diagonal interval

DI; so that the tester can auto raise up to the set drop height for testing.

4. After the drop finishes, the fixture block will automatically return to the set sucking height (generally, at a height of 600~800mm)

5. 4 corners, 8edges, 2 faces, 4 sides can be set to drop and impact on base, if the product is not regular shape, we can make the clamping fixture

for the test.

6. The product will be released at the height around 300mm, that can make sure the impact gesture of the product on the base.

7. the drop bases: steel plate, marble board, wood board.

8. The adoption of Japanese THK high precision low friction slide rail, the friction effect of fixture during dropping can be minimized.


Drop height300~2000mm
Max sample weight2kg
Drop height settingTouch panel setting and display
Min release height300mm
Counter0~999,999 (settable)
Air source≥0.5MPa
Tester sizeW1000xD1180xH2415mm
WeightAbout 420kg
Power supplyAC220V 50Hz 3A or 110V 60Hz 6A
Drop basesSteel, Wood, Granite
Sample fixingSucker or Clamper

The fixture for fixing tested sample:


Automatic Drop Test Equipment

Automatic Drop Test Equipment
