Servo Control Cable Bending Test Machine English Interface Panasonic Motor

  • 1
  • 2

Brand Name : Infinity Machine

Model Number : RS-8105A-5

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Test amount : 5sets

Control system : Touch panel+PLC

Driving system : Panasonic servo motor

Angle range : 0~±180

Weights : 50g,100g,150g,250g,300g or designated by customer

Dimension : W780xD460xH940mm

Weight : About 150kg

Contact Now

Servo Control Cable Bending Test Machine English Interface Panasonic Motor

Model: RS-8105A-5

Purpose:

It is applicable to the bending test for multi-core cables, communication cables, flat cables and signal cables. Test methods: make one end of the cable short connected and clamped, fix it on a rotating disk, and then make it rotate laterally under certain hoisting weight (load) to assess whether the cable is well conducted after the many times.

Specialties:

Driven by Panasonic’s AC servo motor, the product may realize the high-precision positioning with low noise, and it may be used for a long period, with a testing angle of 0~1800 and a resolution of ±10.

Special power rectification circuit is used to improve the long-term service capacity and anti-interference of the motor and execution component.

The FOTEK high-precision optoelectronic switch is used for induction of the zero position, which has a high pulse frequency and is durable.

Japan’s OMRON LCD touch screen is used for program input of the control instrument, and PLC controller is used. Chinese-English interface is available, which is easy to operate and control.

The testing conditions are all set on the touch screen or LCD screen (settings of angle, speed, cycle of tests, cycles of tests completed, retention time of rotation, and retention of N min after N tests).

5 cables may be tested simultaneously.

Each group is provided with signal (conduction test) test cables and indicator lamps. Once the cable is broken in the test (no loop circuit is generated), the indicator lamp at the current location will turn off and the counting will be stopped.

Each group is provided with DC5V power outputs. Maximum current: 3A and power: 15W.

Specification:

Test amount 5pcs
Control system Touch panel+PLC
Driving system Panasonic servo motor
Test speed 1~60cpm±2cpm
Angle range 0~±1800
Min display angle 10
Testing cycles 1~999999 cycles
Dia.of Rotation plate 80mm
Weights 50g,100g,150g,250g,300g or designated by customer
Dimension (WxDxH) W780xD460xH940mm
Weight About 150kg
Power supply AC220V 50Hz 10A

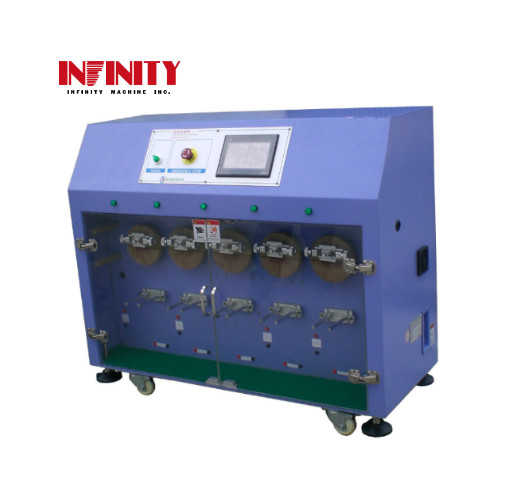

Picture:

Servo Control Cable Bending Test Machine English Interface Panasonic Motor

Service:

For more information, please contact us.

Contacts: Anna Lu

Email: anna.lu@infinity-machine.com

Tel/wechat/whatsapp: +86 18103087812
