Button Keystroke Tester

Brand Name : Infinity Machine
Model Number : RS-6900
Certification : CE, ISO
Place of Origin : Made in China
MOQ : 1 set
Price : Negotiable
Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 200 sets per month
Delivery Time : Shipped in 15 days after payment
Packaging Details : Standard export wooden case with operation manual and video inside.
Capacity : 500gf, 2kgf, 5kgf
Test stroke : 100mm
Load accuracy : ±0.5%
Test speed : 0~200mm/min
Main unit weight : 25kg
Power supply : AC220V 5A or specified by user
Motor : AC servo motor
Main unit dimension : 300x270x500mm
Contact Now

Button Keystroke Tester

Model: RS-6900

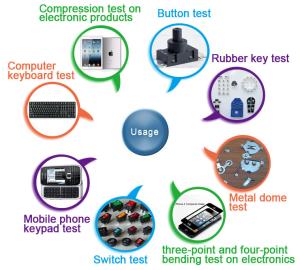

This tester is suitable for rubber, metal domes, key-press, switch, computer key-board etc to do[load-stroke] curve test and accomplish downforce, reboundforce tests. Adopt Windows Xp window program , easy to operate, storing test materials automatically: load-stroke curve, life decline curve, test result, moreover the test method can be preserved and adjusted.

This tester adopt high precision load cell & servo motor for driving, can get the right [load-stoke] result, widely used for button supplier and quality control agent.


1. Rubber key-stoke force test

2. Metal domes key-stoke force test

3. Key-board mobile key-stoke force test

4. Various of switch force test

Tester Feature:

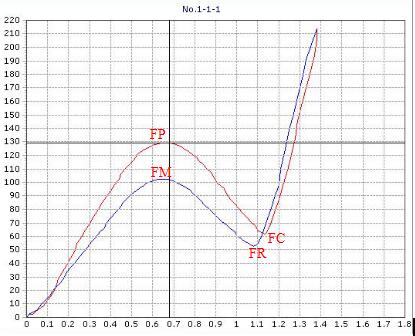

1. Peak Force,Return Force,Distance,TT,Click frequency and kinetic impedance value FO can be showed on the picture directly, needless of

artificial calculation(picture one)

2. Automatism test method,it is controled by computer through testing stroke and load whether the key-stock is high or not.

3. It can show FC,FC_D,FP,FP_D,FM,FM_D,FR,FR_D,CC(Click rate),CC_F,CR,TT,FO,FO_D ect after testing ,and it can judge Passed or

Fail automatically.

FC--- means yield force while press down under max load;

FC-D--- means the stoke while press down at yield force;

FP---- means the max force while press down;

FP-D--- means the stoke while press down at max load;

FM--- means the max. Rebound force;

FM-D--- means the stoke while rebound at max force;

FR--- means yield force under rebound;

FR-D--- means the stoke while rebound under yield force;

TT--- means the max. Testing stoke

CC={(FP-FC)/FP}x100%=CC% CC means click rate / hand feeling

CR={(FP-FR)/FP}x100%=CR% CR means rebound, click rate, rebound hand feeling

FO--- means conducting force, means the force while conducted;

FO_D--- means the stoke of conducting force

FMAX--- means the max force (used for metal domes)

4. These three operation interface of simplified form, traditional form and English can be switched, they are used by global customers, N,Lb,

gf,kgf can be switched freely.

5. Test methods can be settled, stored, adjusted, amended freely, the results must be stored inside the hard-disk, it can print data, curve

directly (one piece of A4 paper can store any indicated N pieces of curve pictures).

6. Can get the life-span decay curve, report can be transfer to Excel and PDF.


Capacity (optional)500gf, 2kgf, 5kgf
Unit (switchable)Kgf, N, Lb, gf
Load accuracy±0.5%
Min. load display0.01gf
Test stroke100mm
Min. displacement display0.001mm
Test speed0~200mm/min
Speed accuracy±0.5%
MotorAC servo motor
Main unit dimension (WxDxH)300x270x500mm
Main unit weight25kg
Power supplyAC220V 5A or specified by user
