Product Description:

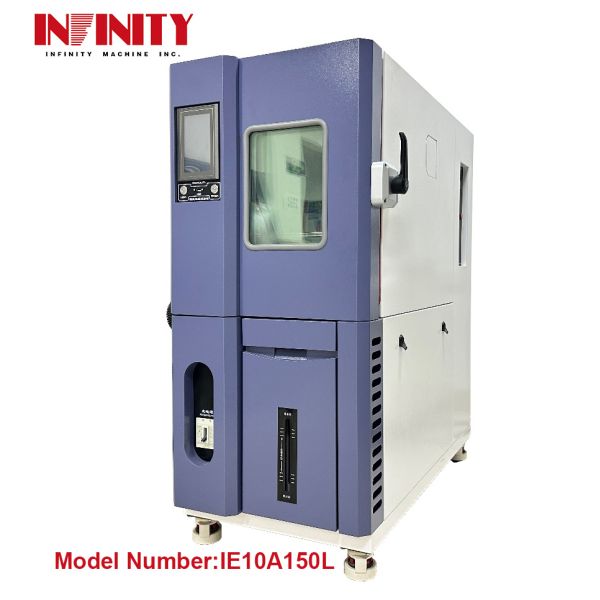

The Environmental Test Chamber is specially designed for testing the performance of materials under extreme temperatures and humidity conditions. It features France Taikang Fully Closed Compressor (2 Sets), which enables a cooling rate from +20℃ to -70℃ within 90min (no load, ambient temperature +25℃). The model number is IE10A150L, and the humidity fluctuation is ±1.0％RH. The box door is designed with a heating wire in the door frame to prevent condensation in the door frame at low temperature.
The Environmental Test Chamber is ideal for High and Low Temperature Test Chamber. With France Taikang Fully Closed Compressor, the cooling rate is fast and precise. The model number is IE10A150L, and the humidity fluctuation is ±1.0％RH. The box door is installed with a heating wire to prevent condensation, making the Environmental Test Chamber safe and reliable.
The Environmental Test Chamber is an excellent choice for tests conducted under extreme temperatures and humidity conditions. It is equipped with France Taikang Fully Closed Compressor, and its cooling rate is from +20℃ to -70℃ within 90min (no load, ambient temperature +25℃). The model number is IE10A150L, and the humidity fluctuation is ±1.0％RH. The box door is designed with a heating wire in the door frame to prevent condensation in the door frame at low temperature.
Features:
- Product Name: Environmental Test Chamber
- Power supply: AC220V;50Hz;5.5KW
- Humidity deviation: ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
- Temperature uniformity: ≦2.0℃
- Heating rate: From -70℃ To +100℃ Within 90min (no Load, Ambient Temperature +25℃)
- Carton size : WxHxD(mm): 720×1500×1270
- Keywords: Environmental Testing Machine, Aging Test Chamber, Environmental Test Systems
Technical Parameters:
| Product name | Technical Parameter |
| Environmental Test Chamber | Inspection window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.
Humidity deviation: ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Interior dimension: WxHxD(mm): 500x600x500
Humidity fluctuation: ±1.0％RH
Power supply: AC220V;50Hz;5.5KW
Temperature uniformity: ≦2.0℃
Coolants: Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic
Temperature fluctuation: ±0.5℃
Carton size : WxHxD(mm): 720×1500×1270 |
Applications:
Infinity Machine's Environmental Test Chamber, Model IE10A150L, is a top-end environment test equipment which is made in China. It is designed to provide a stable and reliable environment for different types of tests. This Environmental Test Chamber is equipped with a LED lighting device installed on the window and offers a temperature fluctuation of ±0.5℃. It also features a warm box which is made of high quality carbon steel plate with electrostatic color spray treatment on the surface. The inner wall material is SUS304# stainless steel plate and the insulation material is hard polyurethane foam insulation layer plus glass fiber. Moreover, it comes with a set of safety protection devices, such as heater anti-burning protection, humidifier anti-burn protection, heater overcurrent protection, humidifier overcurrent protection, circulating fan overcurrent overload protection, compressor high pressure protection, compressor overheat protection, compressor overcurrent protection, overvoltage underinverse-phase protection, circuit breaker, leakage protection, humidifier low water level protection and tank low water level warning. The interior dimension is WxHxD (mm): 500x600x500. With its superior quality and reliable performance, this Environmental Test Chamber is a great choice for any environment test systems.
Customization:
Infinity Machine IE10A150L Programmable Constant Temperature And Humidity Test Box is an environmental testing equipment made in China. It is equipped with France Taikang Fully Closed Compressor (2 Sets) and various safety protection devices including heater anti-burning protection, humidifier anti-burn protection, heater overcurrent protection, humidifier overcurrent protection, circulating fan overcurrent overload protection, compressor high pressure protection, compressor overheat protection, compressor overcurrent protection, overvoltage underinverse-phase protection, circuit breaker, leakage protection, humidifier low water level protection and tank low water level warning. Its interior dimension is WxHxD(mm): 500x600x500 and it has a single door with a heating wire in the door frame to prevent condensation in the door frame at low temperature. This Environment Test Chamber, High And Low Temperature Test Chamber is an ideal choice to test temperature and humidity.
Support and Services:
Environmental Test Chamber Technical Support and Service
At XYZ, we understand that our customers depend on reliable, dependable environmental test chambers. That’s why we offer comprehensive technical support and service options for our environmental test chambers. With our team of experienced engineers, we can help you maintain the high performance of your product.
Technical Support Services
Our team of engineers can provide a variety of technical support services, including:
- 24/7 remote and on-site technical support
- Troubleshooting and diagnostics
- Component and system testing
- Software and hardware updates
- Installation and configuration
- Preventive maintenance
Warranty and Service Contracts
We also offer extended warranty and service contracts for our environmental test chambers. These contracts can include:
- On-site service
- Priority access to technical support
- Regular maintenance inspections
- Replacement parts
- Software and hardware updates
- Extended warranty coverage
Contact Us
For more information about our environmental test chamber technical support and service options, contact us today. We look forward to helping you maintain the highest performance of your product.
Packing and Shipping:
Packaging and Shipping for Environmental Test Chamber:
- The Environmental Test Chamber should be packed in a secure, weatherproof container.
- The container should be labeled with the product name and model number.
- Place the container on a pallet for ease of transport.
- Secure the pallet with shrink wrap and stretch film for extra protection.
- The pallet should be labeled with the destination information.
- The pallet should be secured to the truck with straps and webbing.
- The truck should be equipped with a tracking device to monitor its progress.
FAQ:
- Q: What is the brand name of the Environmental Test Chamber?
A: The brand name of the Environmental Test Chamber is Infinity Machine. - Q: What is the model number of the Environmental Test Chamber?
A: The model number of the Environmental Test Chamber is IE10A150L. - Q: Where is the Environmental Test Chamber made?
A: The Environmental Test Chamber is made in China. - Q: What are the key features of the Environmental Test Chamber?
A: The key features of the Environmental Test Chamber include temperature and humidity control, precise temperature control, and digital control system. - Q: What is the temperature range of the Environmental Test Chamber?
A: The temperature range of the Environmental Test Chamber is from -20°C to +150°C.
