High Efficiency Automatic Operation UV Accelerated Weathering Aging Test Chamber

  • 1
  • 2

Brand Name : Infinity Machine

Model Number : IE60 series

Certification : CE ISO

Place of Origin : Made In China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SETS PER MONTH

Delivery Time : 20-30 days after order confirmed

Packaging Details : Clear sheet+sponge+wood carton

Product name : UV climatic chamber

Model : IE60 series

Temperature range : RT+20℃~70℃

Humidity range : ≥90%RH

Applicable standard : ISO 4892-3、ISO 11507;ASTM D4329、D499、D4587、D5208、G154、G53；

Feature : Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.

Box structure : Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes

Sample holder : Aluminum frame type base frame vision plate, 24pcs

Power : Electronic

Warranty : 1 Year

Contact Now

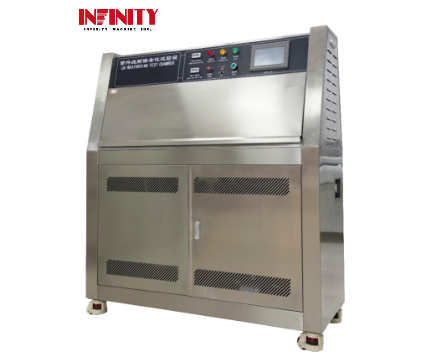

High Efficiency Automatic Operation UV Accelerated Weathering Aging Test Chamber

Model: IE60 series

Equipment Overview:

This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.

High Efficiency Automatic Operation UV Accelerated Weathering Aging Test Chamber

Applicable standards:

  • ASTM D4329,D499,D4587,D5208,G154,G53；
  • ISO 4892-3,ISO 11507；
  • EN 534；EN 1062-4；BS 2782；JIS D0205；SAE J2020

Features:

  • Using the original Q-LAB lamp, the light stability is good, and the test results are high reproducibility.
  • Provides the best sunlight UV simulation, low maintenance and easy to use.
  • Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.

Specification parameter:

Model

IE60304

IE60313
Temperature range

RT+20℃~70℃
Humidity range

≥90%RH
Temperature fluctuation

±0.5℃
Temperature uniformity

≦1.0℃
Center distance inside the lamp

70mm
The distance between the specimen and the center of the lamp

50±3mm
Modulator tube UVA-340 L=1200/40W,8pcs UVB-313 L=1200/40W,8pcs
Irradiance Adjustable within 1.2W/m² Adjustable within 1.0W/m²
Ultraviolet wavelength

315-400nm

280-315nm
Effective irradiation region

900×210mm
Irradiated blackboard temperature

50℃~70℃
Internal dimension:WxHxD(mm)

1140*400*390
Outside box size:WxDxH(mm)

1300*500*1360
Box structure Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes
Sample holder Aluminum frame type base frame vision plate, 24pcs
Standard sample size 75×290mm (Special specifications need to be explained)
Safety protection device Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection
Power supply

AC220V;50Hz;5KW

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
